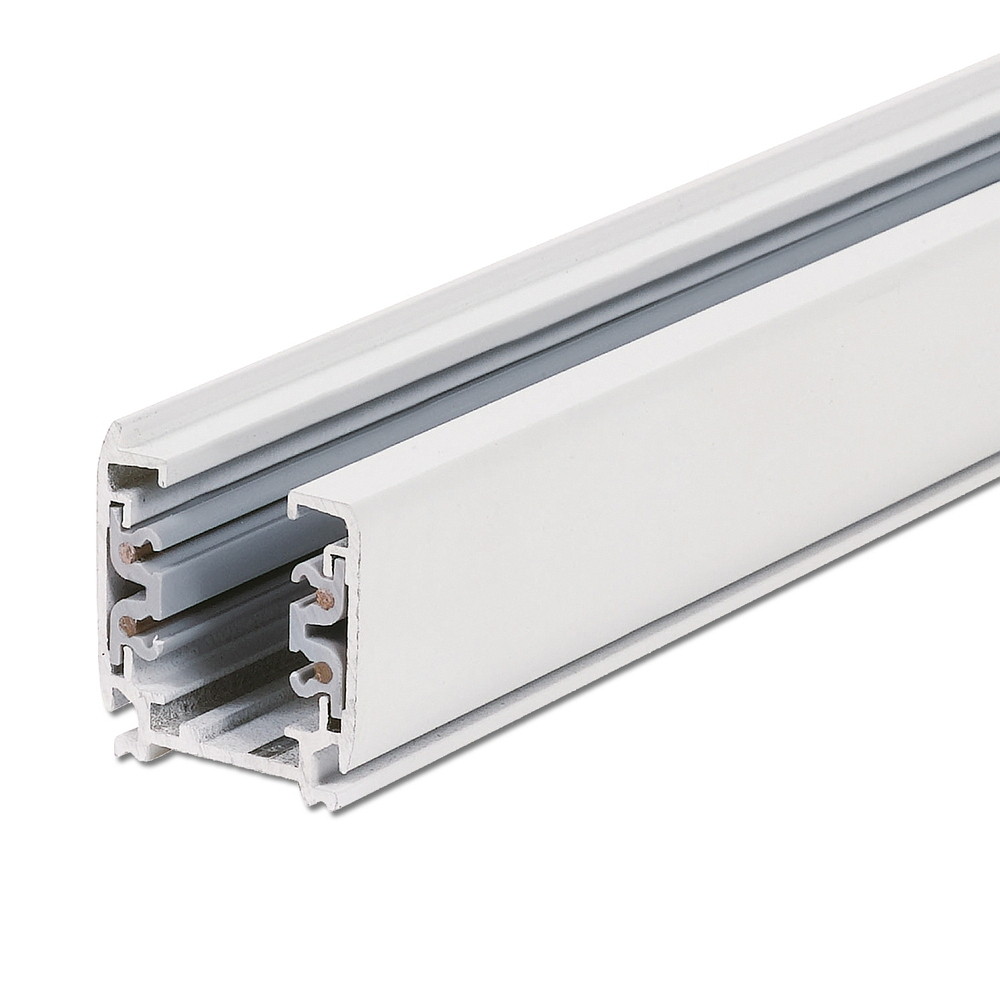

3-phase SERIE S1 - power track, surface mount, 200cm, white

High-Quality 3-Phase S1 Busbar from ISOLED

The 3-Phase S1 busbar from ISOLED is a reliable solution for power supply with an operating voltage of 220-240V AC. It is specially designed for surface mounting and features a flat design with a length of 200 cm. The housing is made of robust aluminum and is finished in elegant matte white, allowing the busbar to blend unobtrusively into various environments.

Easy Installation and Versatile Connection Options

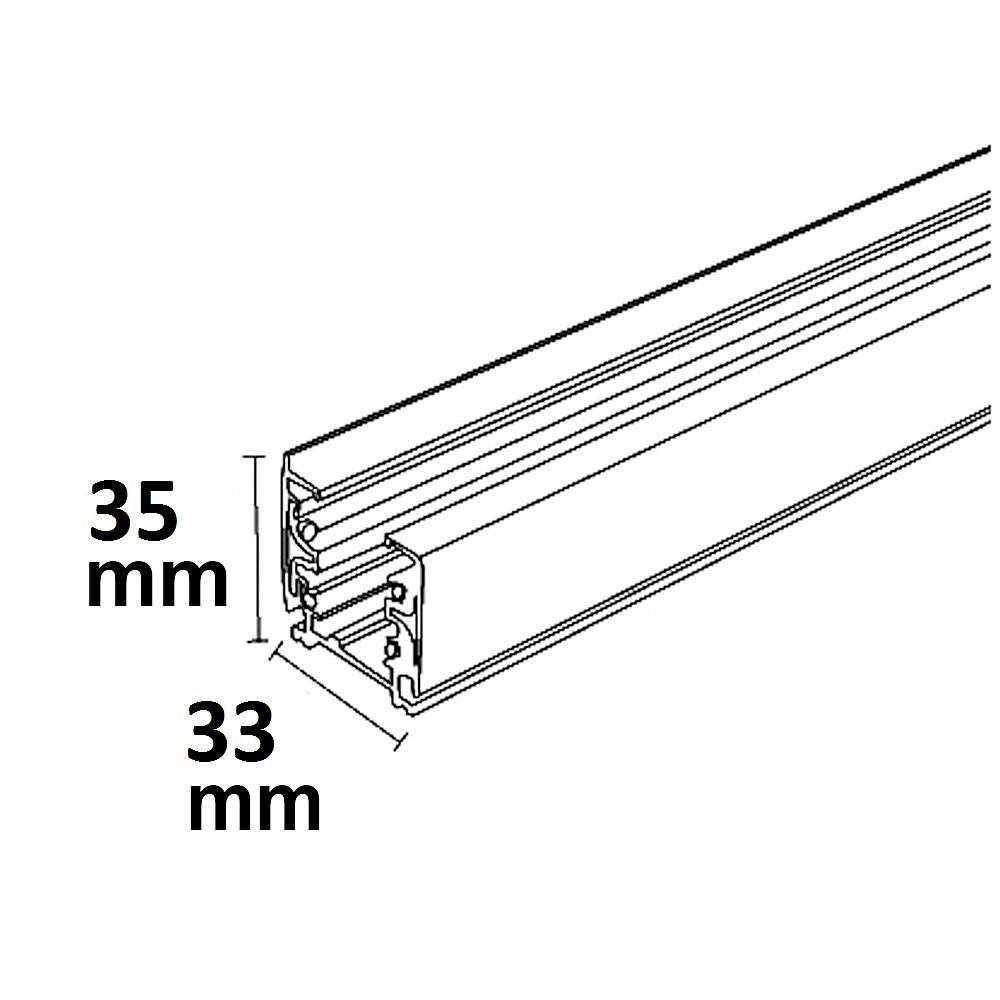

The busbar comes with a mains connection including a feed-in unit and system plug, which significantly simplifies installation. Weighing only 1.58 kg, it is easy to handle and mount. With dimensions of 200 cm length, 3.3 cm width, and 3.5 cm height, it provides a compact and space-saving solution. Protection class 1 ensures a high level of operational safety.

Optimal Load Capacity for Flexible Use

The load capacity of the busbar is adjusted according to the spacing of the mounting points. With a maximum distance of 80 cm between support points, the load capacity is 2 kg per 20 cm, while at a maximum distance of 40 cm, the load capacity increases to 5 kg per 20 cm. These technical details enable flexible use and adaptation to various requirements.

Reliable Mains Frequency and Stable Performance

The ISOLED 3-phase surface-mounted busbar is designed for mains frequencies of 50/60 Hz, ensuring stable and reliable power supply. This makes the product an ideal choice for various electrical applications where consistent performance and safety are important.

Modern Design and Durable Materials

The design of the busbar is not only functional but also aesthetically appealing. The matte white surface blends harmoniously into many application areas. The aluminum housing ensures a long service life and reliably protects the technology from external influences. Users thus benefit from a durable and low-maintenance product.
