LED 3-phase track grid-spot, length 32.15cm, 35W, 45°, CRi >90, rotatable, tiltable, 3000K 2800lm, matt white

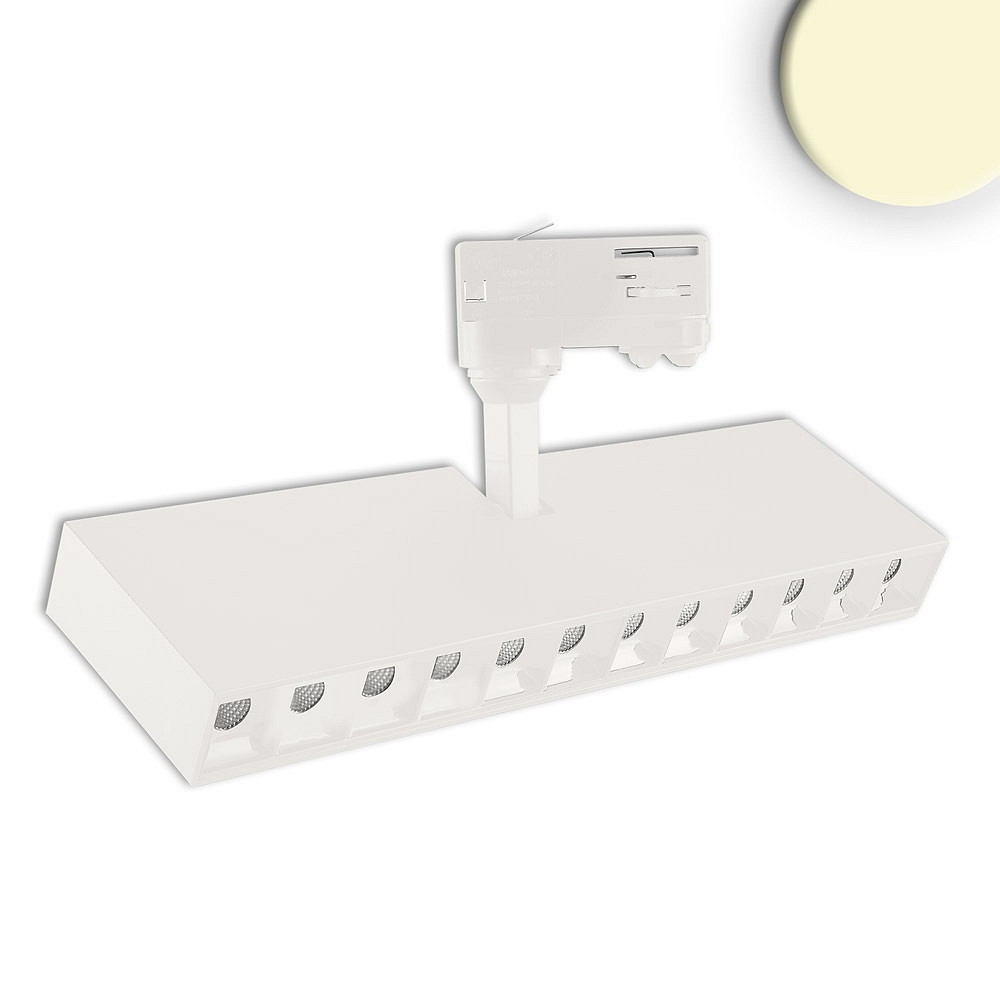

High-Quality LED 3-Phase Grid Spotlight from ISOLED

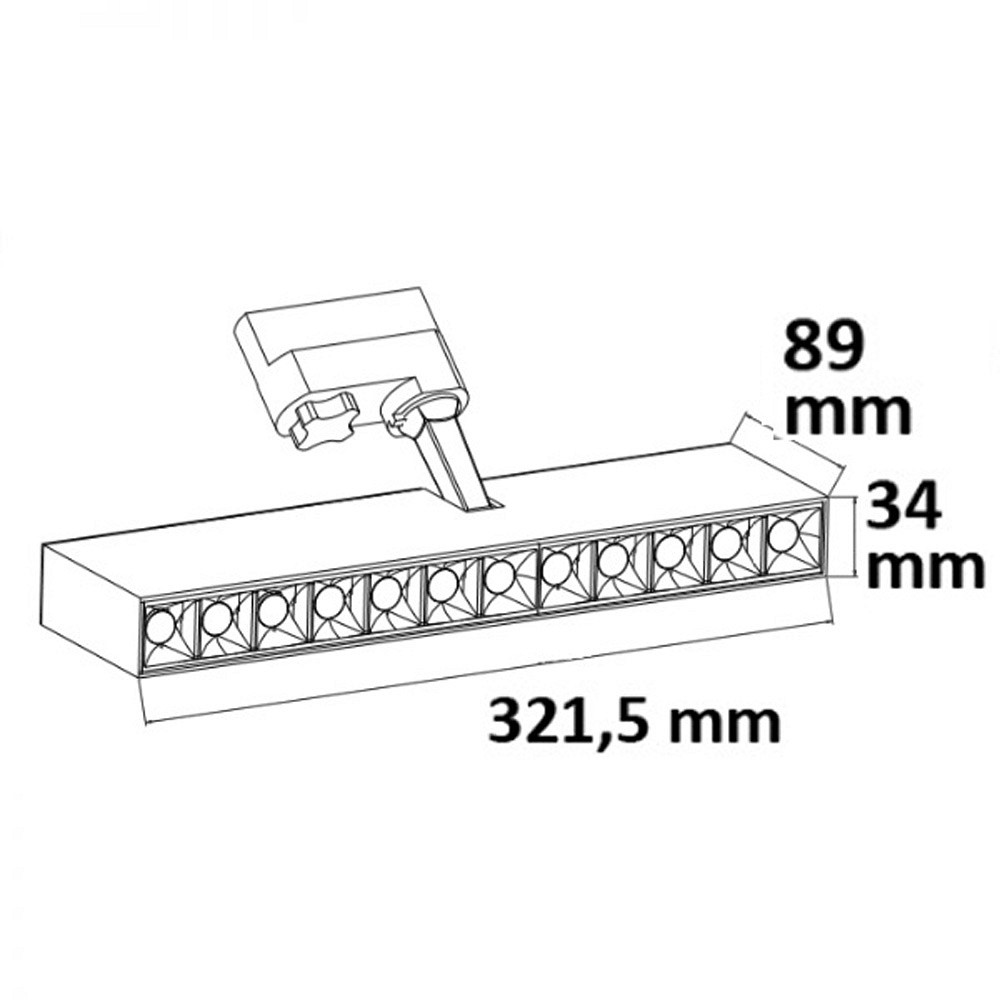

The LED 3-phase grid spotlight from ISOLED impresses with its modern, angular design and versatile application possibilities. With dimensions of 32.15 cm length, 3.4 cm height, and 8.9 cm depth, it offers a compact construction that integrates ideally into various lighting systems. The housing is made of robust aluminum and high-quality glass, ensuring durability and an appealing appearance. The product is available in white and features protection class 1 as well as IP20 protection rating, guaranteeing safe use.

Efficient and Pleasant Lighting Technology

The spotlight provides a warm white light color at 3000 Kelvin, which ensures a pleasant and natural illumination. The color rendering is particularly good with an index of over 90 Ra, so colors are displayed lifelike and brilliant. The luminous efficacy is 72.86 lumens per watt, producing a luminous flux of 2550 lumens at a power consumption of 35 watts. The average lifespan of the LED is an impressive 40,000 hours, guaranteeing long usage without frequent lamp replacements.

Flexible Orientation and Glare-Free

The spotlight is equipped with a rotatable and tiltable lamp head, enabling optimal alignment of the light beam. Thanks to the 12-fold reflector optics, the light is targeted and evenly distributed, with a beam angle of 45 degrees. The glare control with a UGR value below 19 provides comfortable light without disturbing glare, which is especially advantageous at screen workstations. Thus, the spotlight is also suitable for areas where visual concentration is important.

Energy Efficiency and Technical Features

With an energy consumption of only 35 kWh per 1,000 hours, the LED spotlight is very energy efficient. The integrated LED driver operates current-controlled and ensures a high power factor of 0.95. Included in the scope of delivery are a 3-phase adapter and a driver, which allow easy installation in 3-phase high-voltage rail systems. The mains connection is made via a 3-phase rail adapter, which is available separately. The mains frequency is between 50 and 60 Hertz, and the operating voltage is 220 to 240 volts.

Comfort and Safety in Focus

The photobiological safety of the spotlight complies with the EN 62471 standard and is rated RG1, which stands for safe usage. Color consistency is ensured by the McAdam ellipse SDCM3, meaning that multiple spotlights of the same series have a very uniform color temperature. The clever, flat design of the spotlight allows flexible mounting in 3-phase rail systems and is ideal for object lighting, product presentation, and office lighting. Overall, this LED spotlight offers a combination of high quality, energy efficiency, and user-friendliness.
