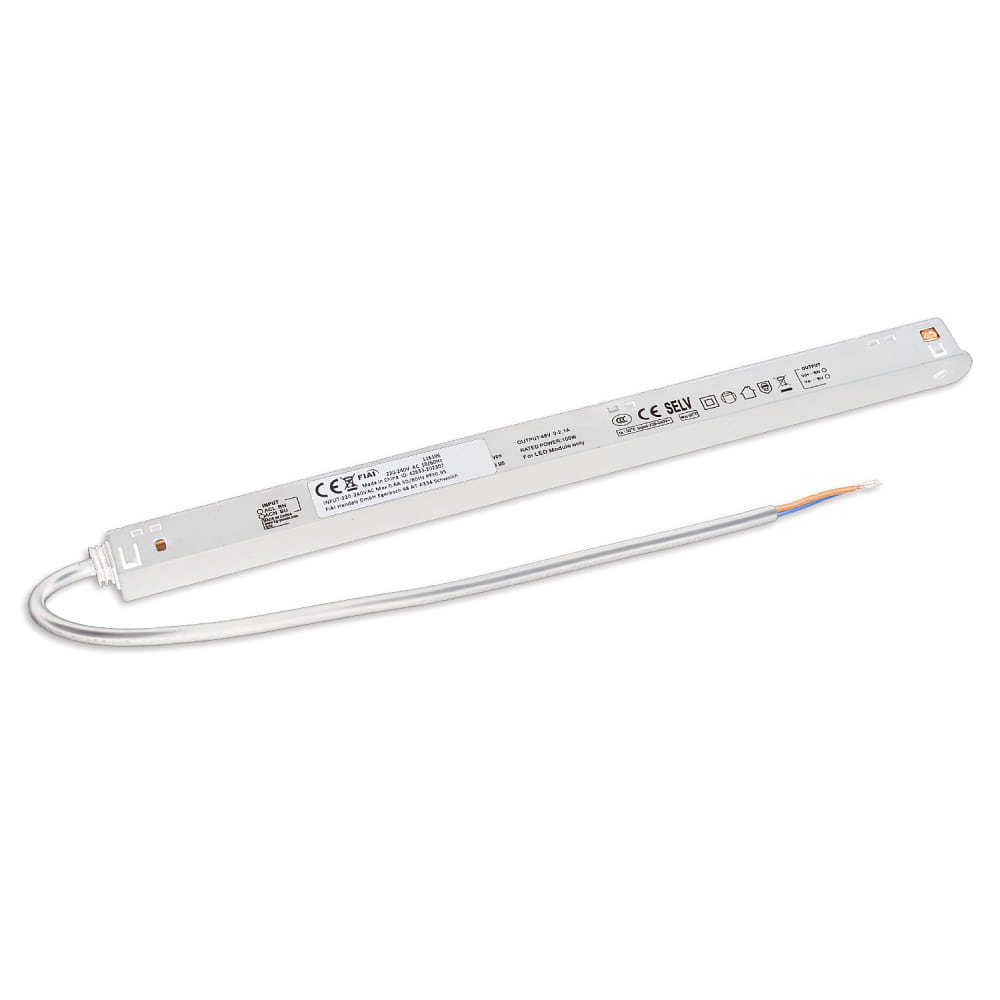

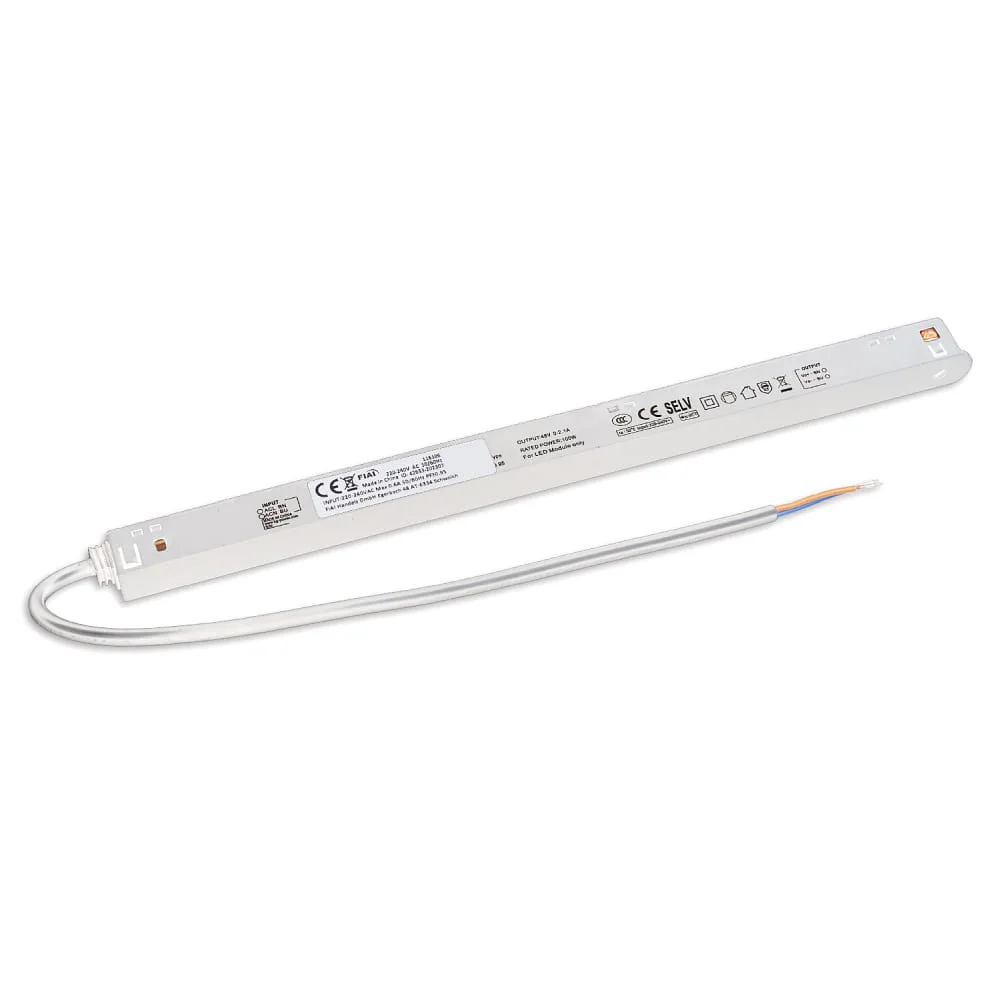

transformer box TRACK48 FLAT - INLINE DRIVER 150W (ON-OFF) flat, switchable, white

Efficient Inline Transformer for the NV TRACK48 FLAT Rail System

The inline transformer from ISOLED is specially designed for the TRACK48 FLAT low-voltage rail system and offers a power output of 100 watts at 48 volts DC. This transformer ensures a stable and reliable power supply for your lights and accessories. Installation is done directly in the rail, guaranteeing a particularly unobtrusive and aesthetic setup. With a length of just under 30 cm and a slim design measuring 1.6 cm in width and 2 cm in height, the transformer fits perfectly into the system without taking up much space.

Technical Details and Easy Installation

The inline transformer operates with a mains voltage of 220 to 240 volts at a frequency of 50 to 60 Hz and has a maximum current load capacity of 0.6 amperes. The connection cable is 25 cm long, facilitating the connection to the mains supply, which is routed through a rear opening in the power rail. Mounting is magnetic within the rail, secured by a locking screw, ensuring the transformer sits securely and firmly. Thanks to protection class 2 and IP20 rating, the device is dust-resistant and offers high safety during operation.

DALI Pass-Through for Convenient Control

A special feature of this transformer is the integrated DALI pass-through, which allows DALI-compatible components to be easily controlled via a dimmer or controller. This enables flexible and energy-efficient lighting control. It is important to note that a DALI-capable driver is required for operating DALI-controllable lights. The transformer itself is equipped with a 2-pole connection cable that is switchable but not DALI-controllable, ensuring simple operation.

High Energy Efficiency and Durable Materials

With the energy efficiency class A1 BAT, the inline transformer impresses with a high efficiency and low energy consumption. The housing is made from a combination of plastic and metal, providing a stable and durable construction. The operating temperature ranges between -10 and +40 degrees Celsius, with a maximum temperature of 90 degrees Celsius at the transformer. These features ensure safe and long-lasting use in the intended environment.

Flexibility and Accessories for Individual Solutions

The inline transformer is compatible with various TRACK48 power rails and can alternatively be operated with external 48V DC drivers. Suitable power feed units with different cable lengths are available separately to meet individual requirements. The scope of delivery includes the connection cable and the driver, while lights, power rails, and other accessories must be purchased separately. This system offers maximum flexibility in designing your lighting solution.
