transformer box TRACK48 INLINE DRIVER 100W (ON-OFF) high, switchable, white

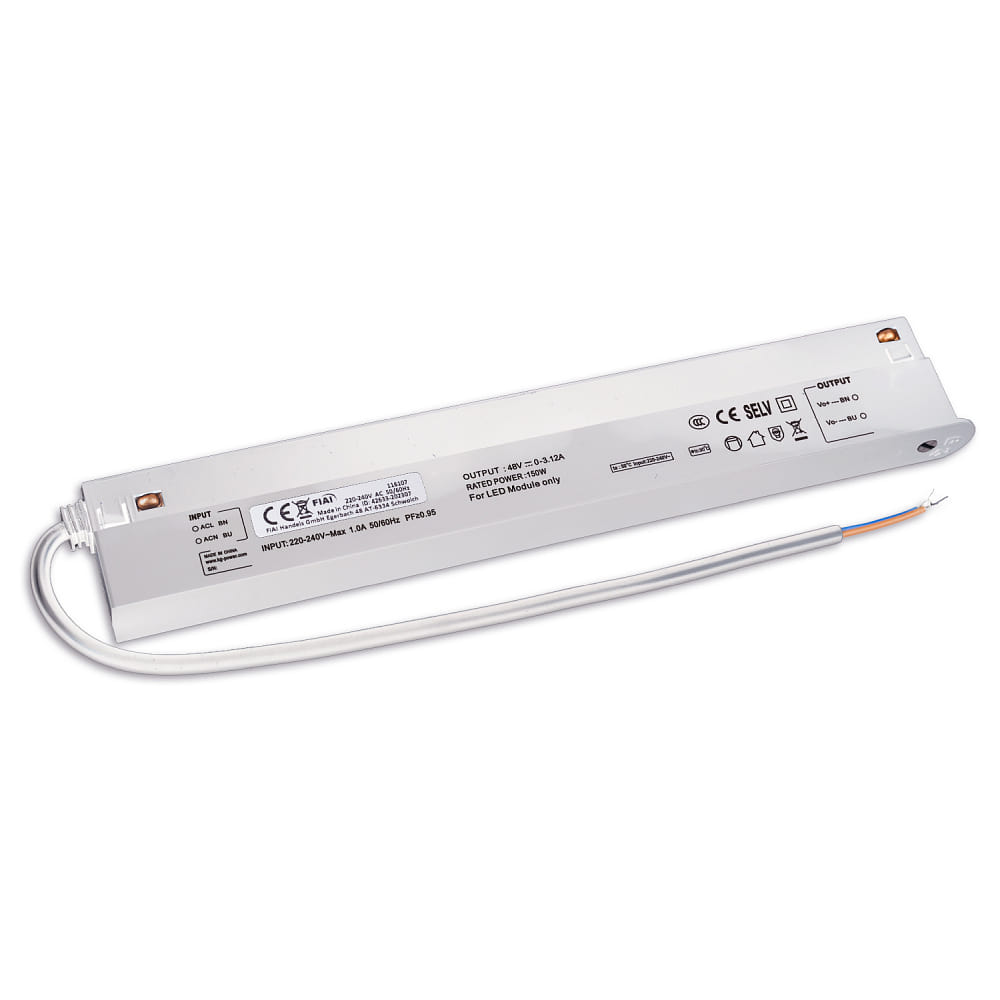

High-Quality Inline Transformer for the TRACK48 Low-Voltage Rail System

The inline transformer from ISOLED is specially designed for the TRACK48 low-voltage rail system and provides reliable power supply with 150 watts of output. With an input voltage of 220-240V AC, it converts this into a stable output voltage of 48V DC. The mounting is done directly in the rail, allowing the transformer to be discreetly integrated into the overall system. This not only ensures an appealing look but also a space-saving installation.

Technical Details and Easy Handling

The transformer has a maximum current load capacity of 1 ampere and operates at a mains frequency of 50/60 Hz. Thanks to its protection class 2 and IP20 rating, the transformer is safely protected against contact. The housing is made of a combination of plastic and metal, providing stability and durability. With compact dimensions of 26.7 x 2.2 x 4.36 cm, the transformer fits perfectly into the TRACK48 system. The 25 cm long connection cable facilitates the connection to the mains.

DALI Through-Wiring for Smart Control

A special highlight is the integrated DALI through-wiring, which allows DALI-compatible luminaires or control devices such as dimmers to be connected and controlled directly. This enables you to adjust your lighting installation flexibly and comfortably. It is important to note that for the operation of DALI-enabled components, a corresponding DALI driver is required. The transformer itself is equipped with a 2-pole connection cable, which is switchable but not DALI-controllable. For more complex controls, suitable external 48V DC drivers with longer connection cables are available.

Practical Installation and Accessories

The transformer is magnetically attached to the TRACK48 power rail and then secured with a locking screw to prevent it from falling off. The routing of the mains connection cable is conveniently done through a rear opening in the rail. The scope of delivery includes the connection cable and the driver; luminaires and power rails are not included. The product weight is 0.376 kg, ensuring easy handling during installation.

Energy Efficiency and Application Areas

With the energy efficiency class A1 BAT, the inline transformer impresses with a high efficiency and a power factor of over 0.95. The allowable ambient temperature ranges between -10 and +40 degrees Celsius, and the transformer is designed for a maximum operating temperature of 90 °C. These features ensure long-lasting and safe operation within the recommended operating conditions. Overall, the ISOLED inline transformer is the perfect solution for efficient and flexible power supply in the TRACK48 low-voltage rail system.
