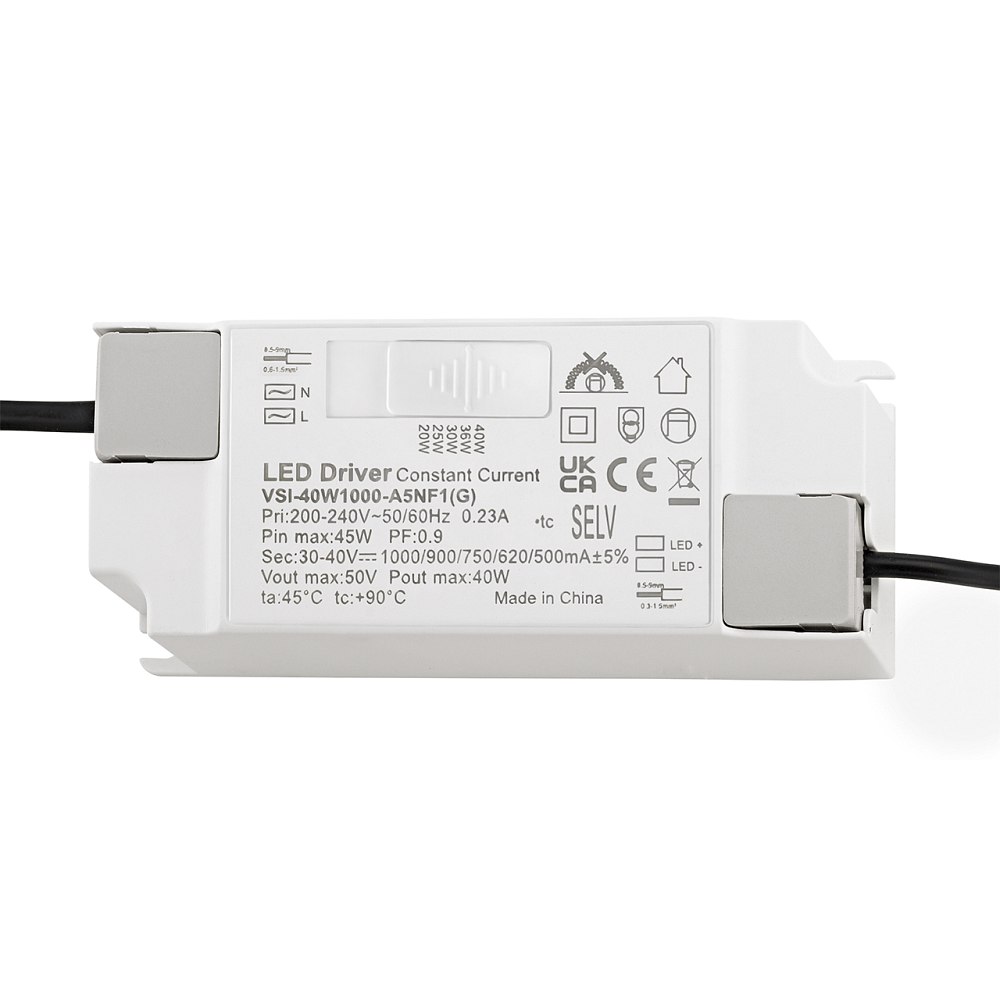

LED power supply unit DIP POWERLINE PANEL CC, white

High-Quality LED Power Supply from SIGOR

The DIP POWERLINE PANEL CC power supply from SIGOR is specially designed for LED lighting systems and offers a reliable power supply with an output of 40 watts. It is available in several rated current levels, including 500, 620, 750, 900, and 1000 mA, allowing flexible adaptation to different LED requirements. The operating voltage is 230 volts, enabling use with common power grids.

Efficient and Safe Technology

With a power consumption between 20 and 40 watts, the power supply operates efficiently and saves energy. Protection class 2 ensures safe operation without a grounding connection, while protection rating IP20 protects the device from solid foreign objects. Switching cycles of up to 50,000 guarantee a long service life and high reliability in continuous operation.

Reliable Temperature and Environmental Resistance

The power supply is designed for a temperature range from -20 to 45 degrees Celsius and withstands a maximum case temperature (Tc) of 85 degrees. These features ensure that the device functions stably even under changing temperature conditions, significantly increasing operational safety.

Compact Design and Attractive Appearance

With dimensions of 13.8 cm length, 4.7 cm width, and 3 cm height, the power supply is compact and space-saving. The white color blends unobtrusively into various environments. Weighing only 102 grams, the device is also lightweight and easy to install.

Easy Integration and Technical Details

The power supply provides a constant output voltage of 40 volts DC, ensuring stable and consistent power for the connected LED lights. The mains frequency is 50/60 Hz, making it compatible with different power grids. Thanks to clear technical specifications, integration into existing systems is straightforward and user-friendly.
