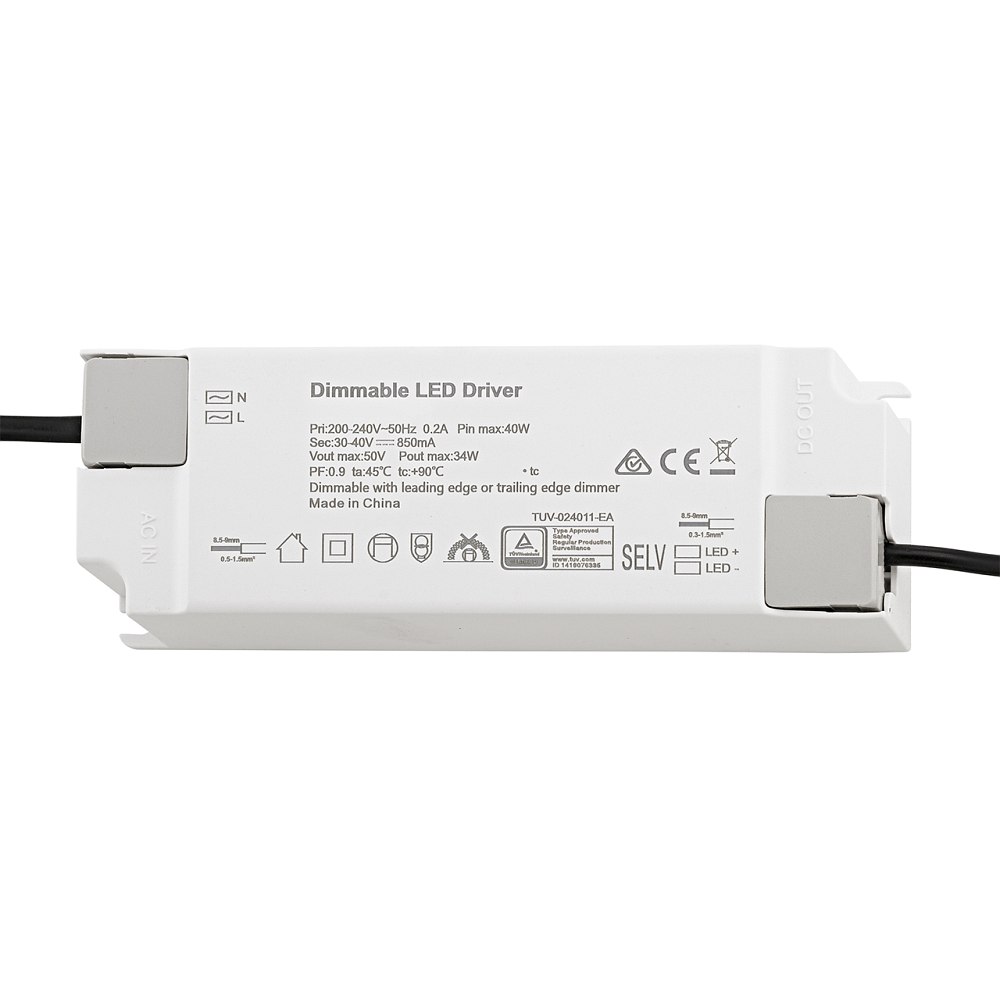

LED power supply unit POWERLINE TRIAC PANEL CC, white

High-Quality LED Power Supply from SIGOR

The POWERLINE TRIAC PANEL CC power supply from SIGOR is a powerful and reliable LED power supply, offering an output power of 34 watts and a rated current of 850 mA. This product is specially designed to provide LED lights with a constant current supply, ensuring even and stable lighting. The operating voltage of 230 volts makes it compatible with common power grids in Europe.

Efficient and Safe Performance

With a power consumption of 36 watts, the power supply operates efficiently and saves energy. The integrated protection class 2 provides additional safety by minimizing the risk of electric shock. The IP20 protection rating ensures that the power supply is protected against solid foreign objects larger than 12.5 mm in diameter, making it ideal for use in various environments.

Durability and Robust Construction

The power supply is designed for a long service life and can easily withstand up to 50,000 switching cycles. The temperature resistance range from -20 to 45 degrees Celsius ensures that the device operates reliably even under changing conditions. The maximum housing temperature of 90 degrees Celsius (Tc) guarantees safe heat dissipation and protects internal components from overheating.

Compact and Practical Dimensions

With dimensions of 13.8 cm in length, 4.7 cm in width, and 3 cm in height, the power supply is compact and can be easily integrated into a wide variety of installations. The white color blends unobtrusively into many environments and provides a clean appearance. The simple installation and handy size make the POWERLINE TRIAC PANEL CC particularly user-friendly.

Technical Details Made Easy

The power supply delivers a constant output voltage of 40 volts DC, which is optimally tailored to the requirements of many LED lights. The mains frequency of 50/60 Hz corresponds to the standard values for power grids, making the device flexibly usable. Thanks to these technical features, the product consistently ensures efficient and stable power supply for your LED lighting.
