LED power supply unit POWERLIE DALI PANEL CC, white

High-Quality LED Power Supply for Reliable Power

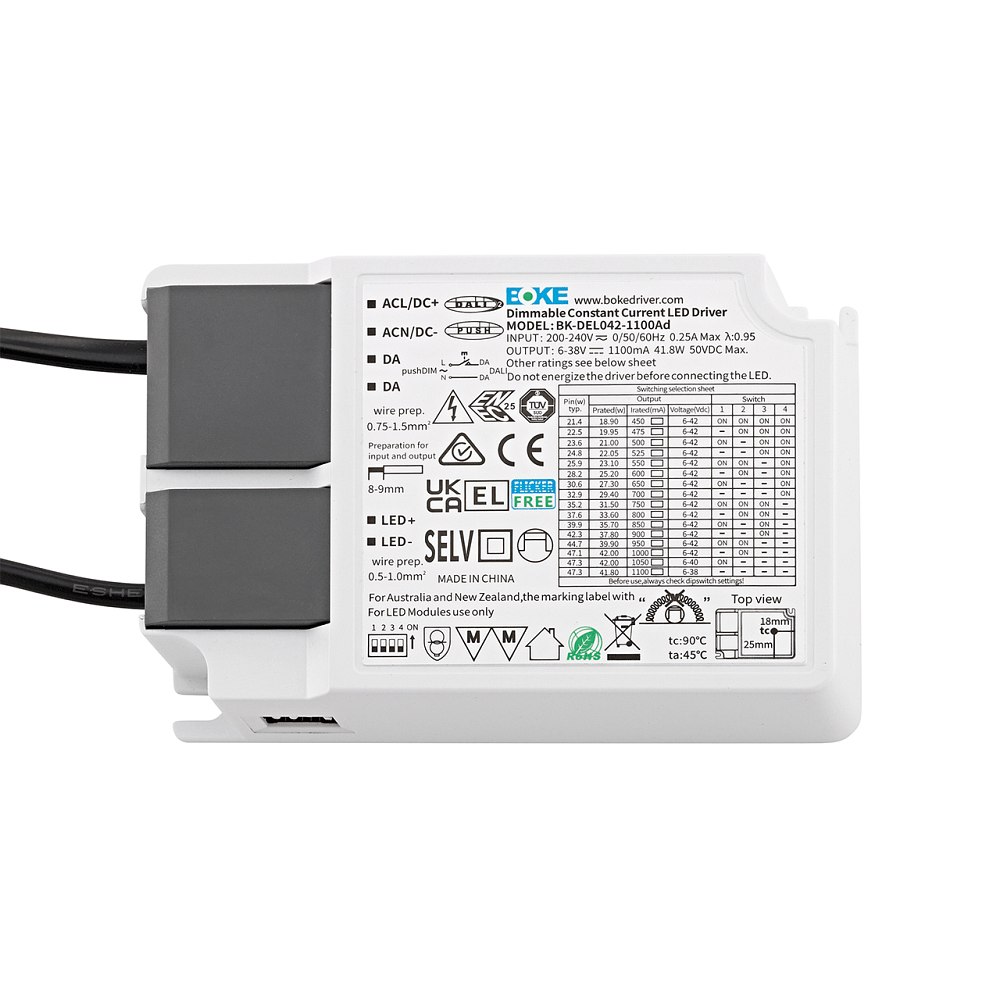

The POWERLINE DALI PANEL CC power supply from BOKE provides stable and efficient power with an output of 42 watts. It is specially designed for LED applications and impresses with its rated current of 1100 mA. Thanks to its protection class 2 and IP20 protection rating, the power supply is safe and robust in operation. The elegant white color allows for unobtrusive integration into various installation environments.

Energy Efficiency and Technical Specifications

With an efficiency of 87% at full load, the power supply ensures energy-saving usage. The power consumption during operation is 47.3 watts, while only 0.5 watts are needed in standby mode. The operating voltage is 230 volts and the mains frequency is 50/60 Hz, guaranteeing wide compatibility. The power factor of 0.95 PF indicates that the device uses electrical energy very efficiently.

Durability for Long-Term Use

With an average lamp lifetime of up to 100,000 hours, the POWERLINE DALI PANEL CC is particularly durable. It is designed for up to 50,000 switching cycles, ensuring high reliability in daily operation. The temperature resistance of up to 90°C at the housing (Tc) guarantees safe operation even under high loads and prolonged use.

Compact Dimensions and Easy Installation

The power supply measures a compact 10.3 cm in length, 6.85 cm in width, and 3.1 cm in height, making it easy to fit into various installation situations. The output voltage is 42 volts direct current (DC), ideal for modern LED panels and luminaires. The simple handling and light weight significantly facilitate installation and maintenance.

Optimal Temperature and Environmental Values

The device is designed for a temperature range from -20 to 45 degrees Celsius, allowing flexible use under different conditions. The current consumption is 0.25 amperes, making the power supply energy-efficient. With reliable temperature management and robust technical features from BOKE, this power supply is an excellent choice for durable and high-performance LED lighting solutions.
