3-phase spot MATRIX ON-OFF square, UGR < 19, switchable, with lens optics, cardanic swivelling IP20, white

High-Quality LED 3-Phase Spotlight MATRIX

The LED 3-Phase Spotlight MATRIX from ISOLED impresses with its modern, flat design and square shape. With a power consumption of only 20 watts and an impressive luminous efficacy of 110 lumens per watt, this spotlight ensures efficient and bright illumination. The housing made of robust die-cast aluminum guarantees durability while weighing only 1.35 kilograms. The device is designed for connection to 3-phase high-voltage rail systems and comes with a suitable adapter and driver, making installation especially easy.

Optimal Light Quality and Color Rendering

With a neutral white color temperature of 4000 Kelvin, the MATRIX spotlight produces a pleasant, neutral light that is ideal for object lighting and merchandise presentation. Particularly noteworthy is the high color rendering index of over 92 Ra (class 1A), which ensures authentic and brilliant color reproduction. The color consistency corresponds to the McAdam ellipse SDCM3, meaning that color deviations among multiple luminaires of the same type are extremely low. This is especially important in areas where precise color representation is required.

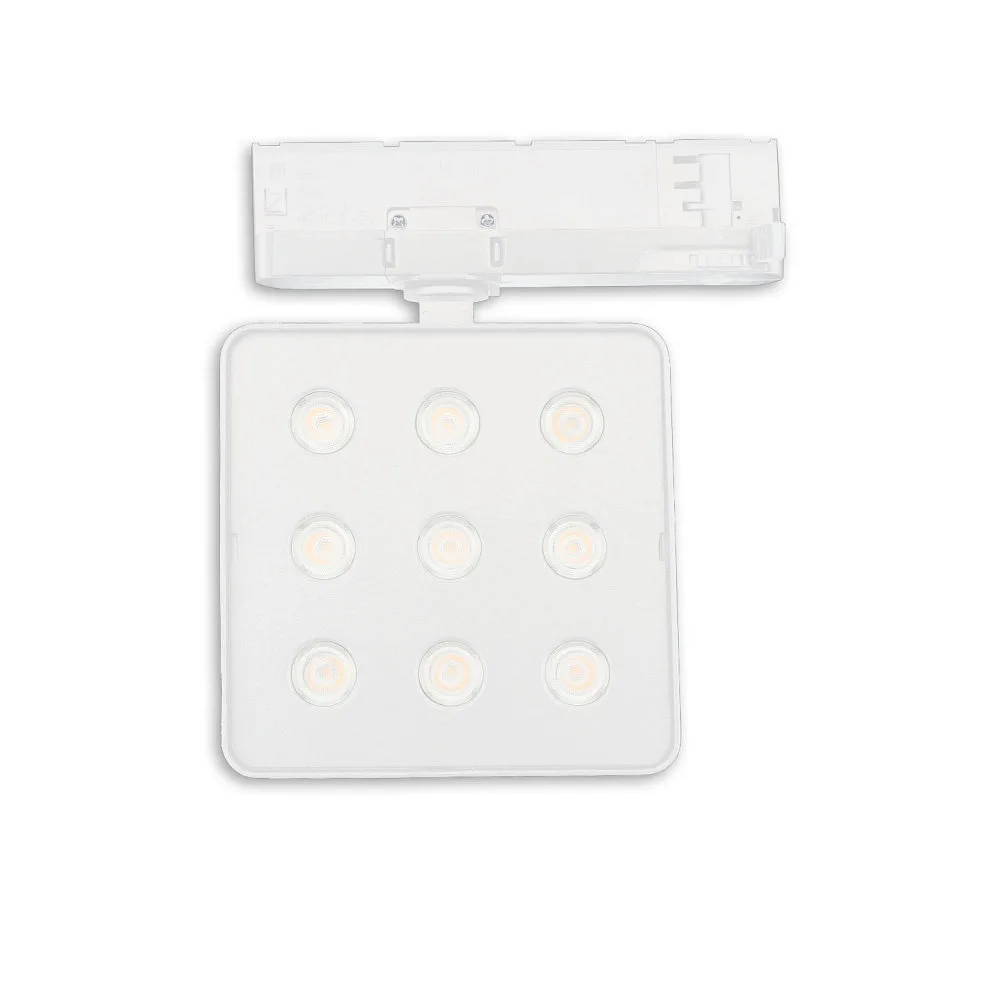

Glare-Free and Flexible Light with 9-Lens Optics

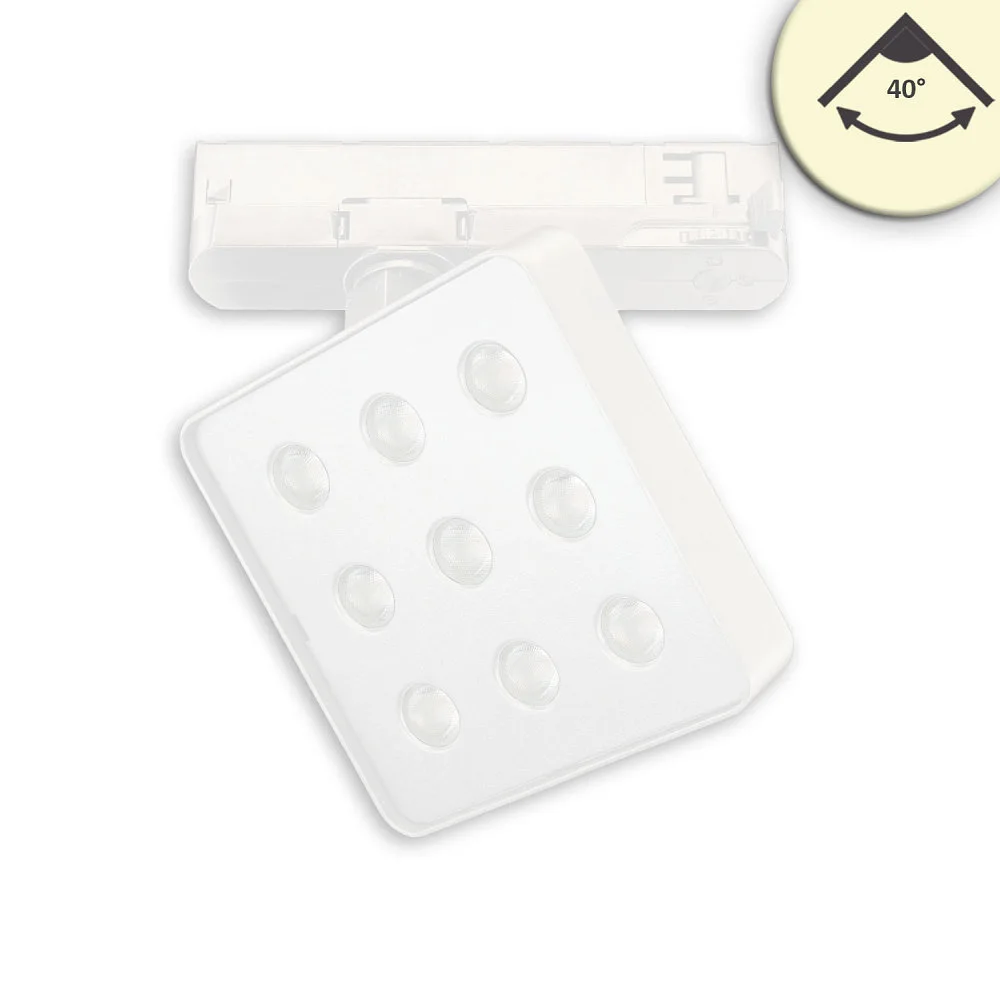

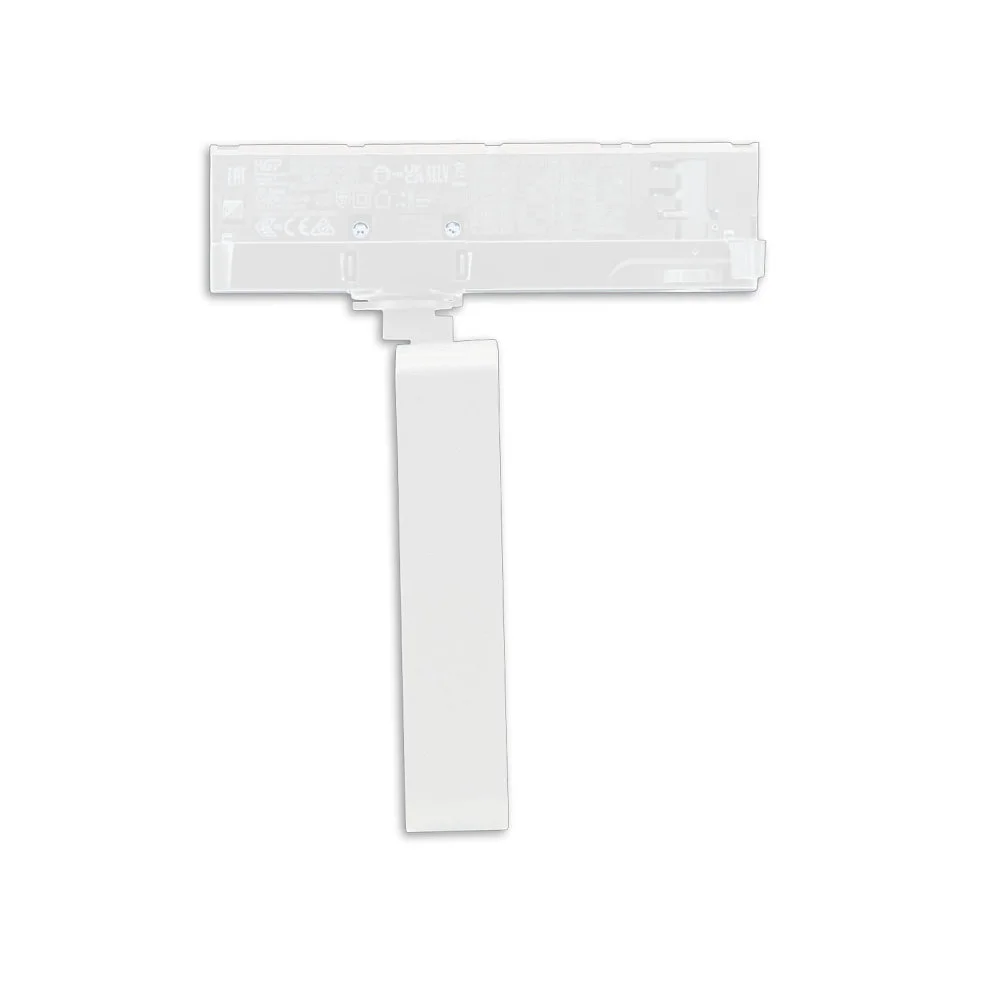

The spotlight features a specially developed 9-lens optics system that precisely directs the light beam with a 40° angle while providing glare control with a UGR <19. This low glare level makes the light more comfortable for the eyes and is also suitable for screen workplaces. Additionally, glare can be further reduced to UGR <16 by an optionally available honeycomb filter. The rotatable and tiltable lamp head also allows individual adjustment of the light beam to set targeted accents.

Robust Technology and Long Lifespan

The MATRIX spotlight is designed for an average lifespan of up to 76,000 hours, ensuring very reliable and low-maintenance lighting. It operates at a mains frequency of 50/60 Hz and a supply voltage of 220 to 240 volts. Protection class 1 and IP20 rating provide solid safety in the intended application area. Thanks to the switchable ON-OFF function, the spotlight can be easily integrated and controlled in analog 3-phase rail systems.

Versatile Applications and Accessories

The LED 3-Phase Spotlight MATRIX is ideal as a spot for object lighting, merchandise presentation, or screen workplaces. It is available in neutral white and can optionally be ordered in a warm white light tone. Accessories such as the 3-phase adapter and driver are included in the delivery, while the 3-phase rail and honeycomb filter are available separately. For modern building automation systems, a DALI-dimmable version is also available, enabling even more flexible lighting control.
